Description

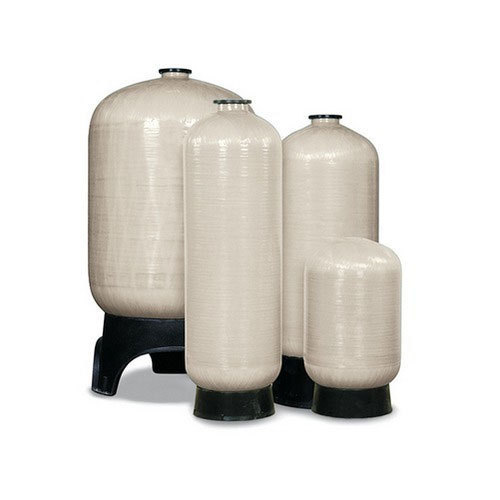

The ideal pressure vessel for residential and light commercial water softener/filtration applications. Structural Poly Glassâ„¢ Pressure Vessels provide years of reliable service for water conditioning and filtration applications. These tanks offer unmatched strength and chemical resistance.
Specifications
Product |   2472 canature  Vessel Top & Bottom Opening |
Brand | Â Â canature |
Model | Â Â 2472 T & B Opening |
Opening | Â Â 4 inch Threaded Top & Bottom |
Colour | Â Â Blue, grey |
Material Inner Shell | Â Â Polyethylene (PE) seamless one-piece tank liner |
Material Outer Shell | Â Â Continuous strands of fiber-glass with high strength epoxy resin |
Diameter | Â Â 24 inches ( 610 mm) |
Max. Working Temperature | Â Â 49 Deg. C |
Max. Working Pressure | Â Â 150 PSI (10.34 bar) |
Max. Vacuum | Â Â 127mmHg(5″Hg) |
Volume | Â Â 450 liters |
Certifications | Â Â NSF & CE |
Dimensions | |
Height w/o base (mm) |
  68.50 inch (1740 mm) |
Height with base (mm) |
  89.29 inches (2268 mm) |
Operating Pressure |
  145 PSI (10 bar) |
Weight (Kg) | Â Â 47.96g |
