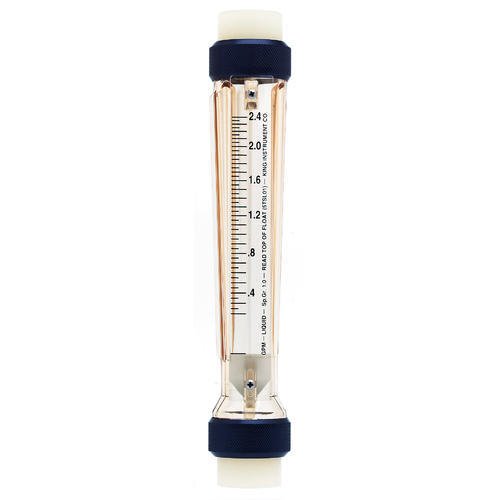

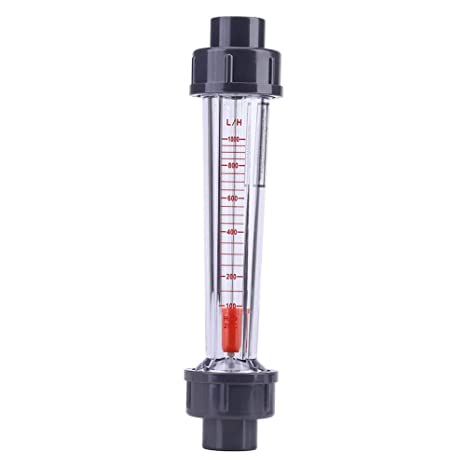

The Rotameter’s operation is based on the variable area principle: fluid flow raises a float in a tapered tube, increasing the area for passage of the fluid.
The greater the flow, the higher the float is raised. The height of the float is directly proportional to the flow rate.
The float reaches the stable position in the tube when the upward force entered by the flowing liquid equals the downwards gravitational force entered by the weight of the float.
A 10000 LPH Online Rotameter is a class product.
Features:
Tamper & Sunlight Proof Graduation Sticker
Enhanced Meter Readability Using Precision Textured Body
SS 316 Rod & Float for Rust-Free Usage
Each Rotameter is Factory Calibrated
Each Float is Buffed for Accuracy & Repeatability
Negligible Pressure Drop
Single Piece, Injection Moulded, Polycarbonate Body
Each Rotameter is Hydro Tested at 8 kg/cm² pressure
